1 kV. AKMI Pin type spanner flat insulators White / Red

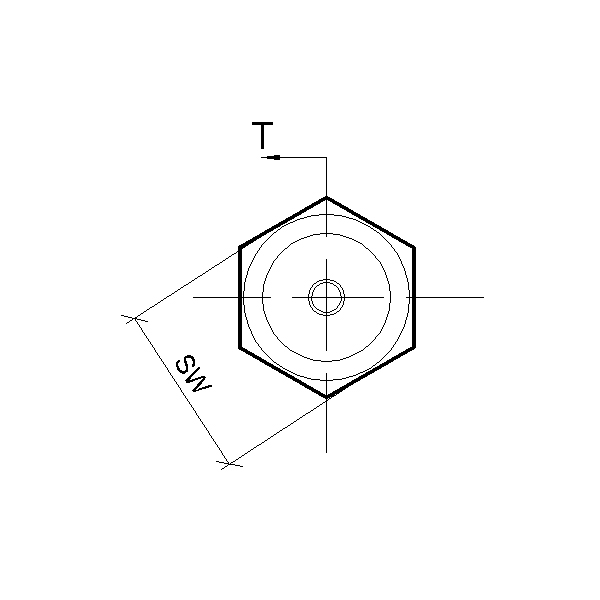

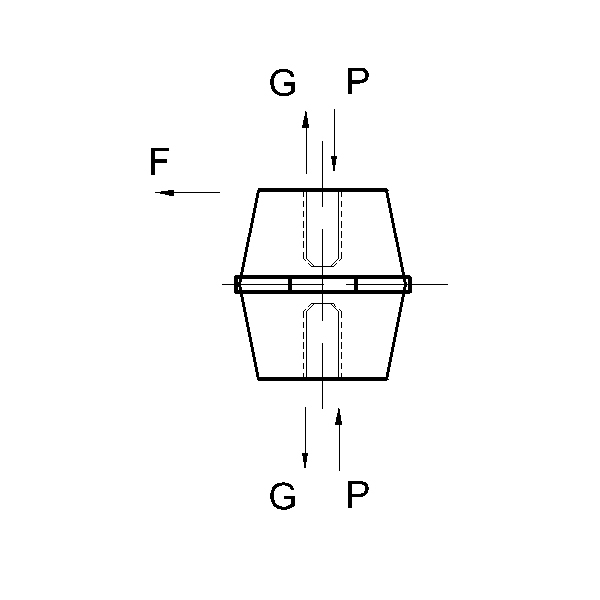

ORDER CODE	SPECIFICATIONS	COLOUR	DIMENSIONS (mm.)				OPERATING VOLTAGE (kV)	TEST VOLTAGE (kV)	T FLEXURAL FORCE (Nm)	F BREAKING FORCE (kN)	G TENSILE FORCE (kN)	P PRESS FORCE (kN)

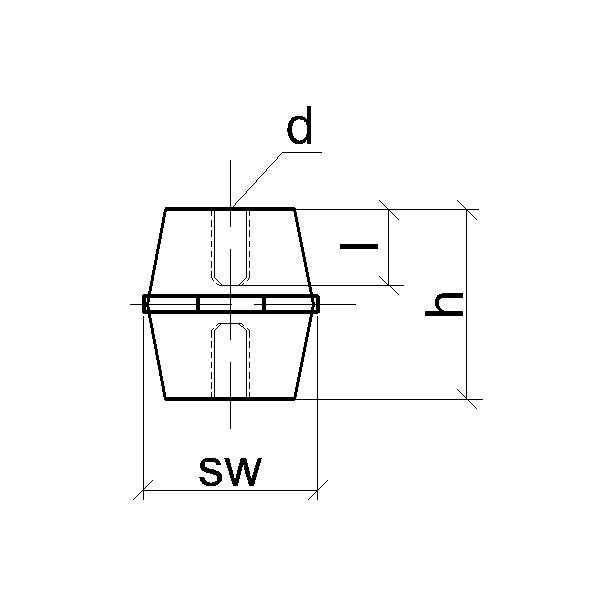

ORDER CODE	SPECIFICATIONS	COLOUR	h	l	d	sw	OPERATING VOLTAGE (kV)	TEST VOLTAGE (kV)	T FLEXURAL FORCE (Nm)	F BREAKING FORCE (kN)	G TENSILE FORCE (kN)	P PRESS FORCE (kN)
112125060101	AKMI-625B--Spanner flat, M6 Brass blind nuts, h: 25 mm.	RED	25	7	M6	21	1	5	15	1,5	5	35
113230060101	AKMI-630B--Spanner flat, M6 Brass blind nuts, h: 30 mm.	RED	30	8	M6	32	1	5	20	2,5	3,16	40,9
113230080101	AKMI-830B--Spanner flat, M8 Brass blind nuts, h: 30 mm.	RED	30	8	M8	32	1	5	40	3,0	3,16	40,9
113335060101	AKMI-635B--Spanner flat, M6 Brass blind nuts, h: 35 mm.	RED	35	10	M6	33	1	5	20	2,0	6	45
113335080101	AKMI-835B--Spanner flat, M8 Brass blind nuts, h: 35 mm.	RED	35	10	M8	33	1	5	40	3,5	12	60
113335100101	AKMI-1035B--Spanner flat, M10 Brass blind nuts, h: 35 mm.	RED	35	10	M10	33	1	5	50	4,0	16	80
114045080101	AKMI-845B--Spanner flat, M8 Brass blind nuts, h: 45 mm.	RED	45	14	M8	40	2	15	40	5,0	12	90
114045100101	AKMI-1045B--Spanner flat, M10 Brass blind nuts, h: 45 mm.	RED	45	14	M10	40	2	15		8,0	20	100
114650100101	AKMI-1050B--Spanner flat, M10 Brass blind nuts, h: 50 mm.	RED	50	14	M10	46	2	15	90	12,5	20	100
114650120101	AKMI-1250B--Spanner flat, M12 Brass blind nuts, h: 50 mm.	RED	50	14	M12	46	2	15		12,5	22	120
114051080101	AKMI-851B--Spanner flat, M8 Brass blind nuts, h: 51 mm.	RED	51	14	M8	46	2	15	90	12,5	20	100
114051100101	AKMI-1051B--Spanner flat, M10 Brass blind nuts, h: 51 mm.	RED	51	14	M10	46	2	15		12,5	22	120
115060100101	AKMI-1060B--Spanner flat, M10 Brass blind nuts, h: 60 mm.	RED	60	20	M10	50	3	20	90	6,0	20	100
115060120101	AKMI-1260B--Spanner flat, M12 Brass blind nuts, h: 60 mm.	RED	60	20	M12	50	3	20		6,0	20	100
